Big Picture
ASTM 2024 paper

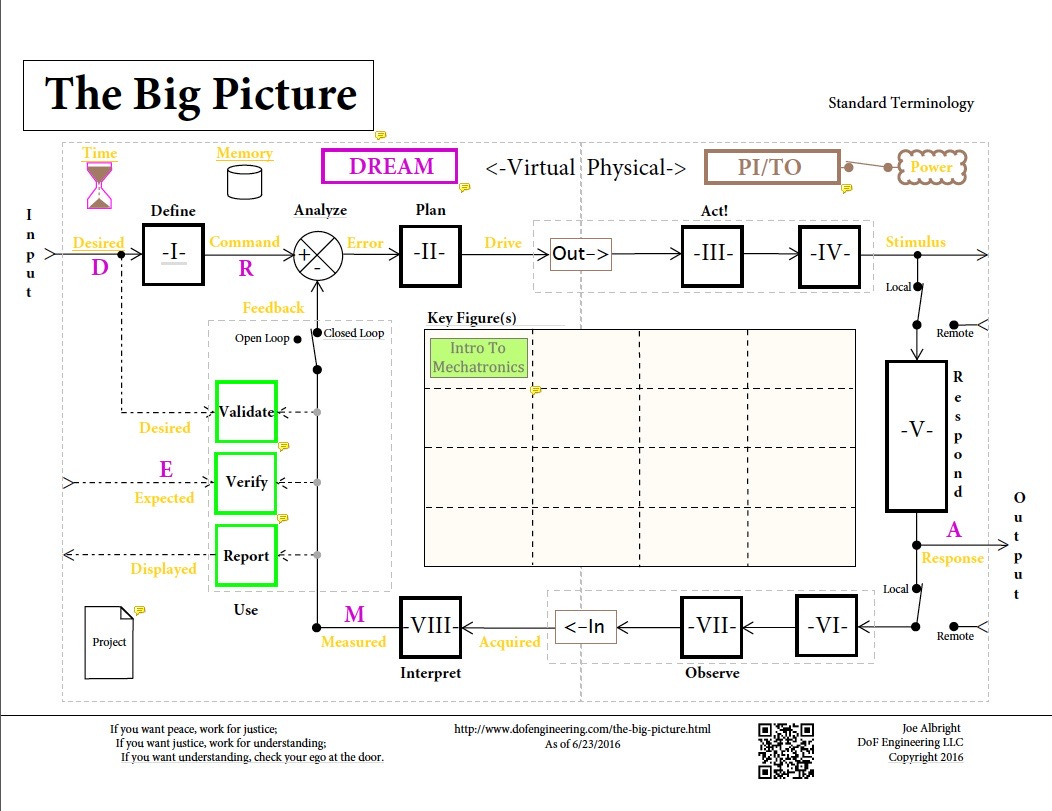

The Big Picture is shown below. This is an illustration of the various functional elements of a mechatronic device. In the figure each is generic in nature. For a material test application they take on specific meanings. Contact Joe Albright for an in-depth explanation of this graphic and associated concepts.
